PADEL COURTS

XTREME PADEL COURTS

We are manufacturers of padel courts!

With our brand Xtreme we have more than 15 years of experience in the construction, manufacture and installation of padel courts in Spain and abroad. That is why we can guarantee the best result and the best quality/price ratio

19

YEARS OF EXPERIENCE

368

FINISHED PROJECTS

1502

PADEL COURTS IN SPAIN

68

PADEL COURTS ABROAD

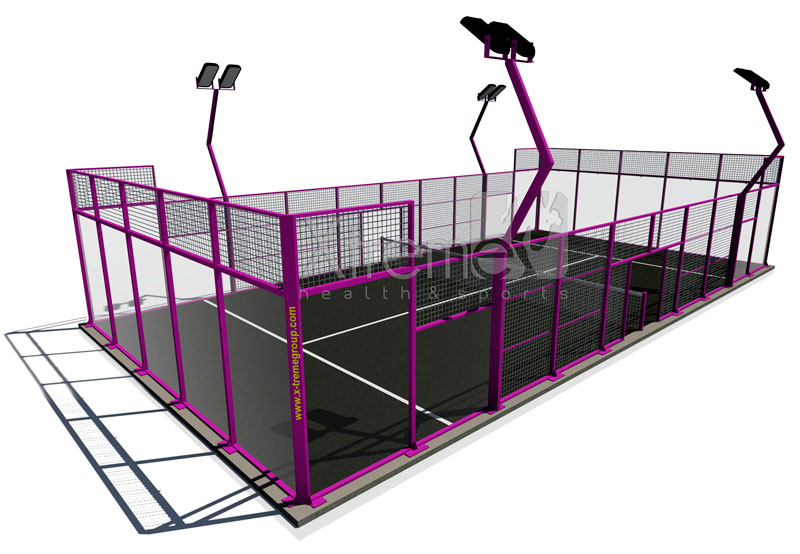

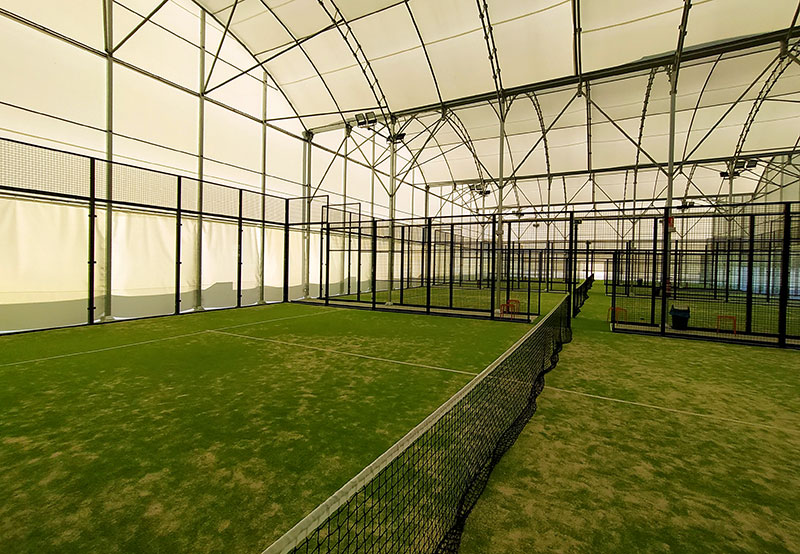

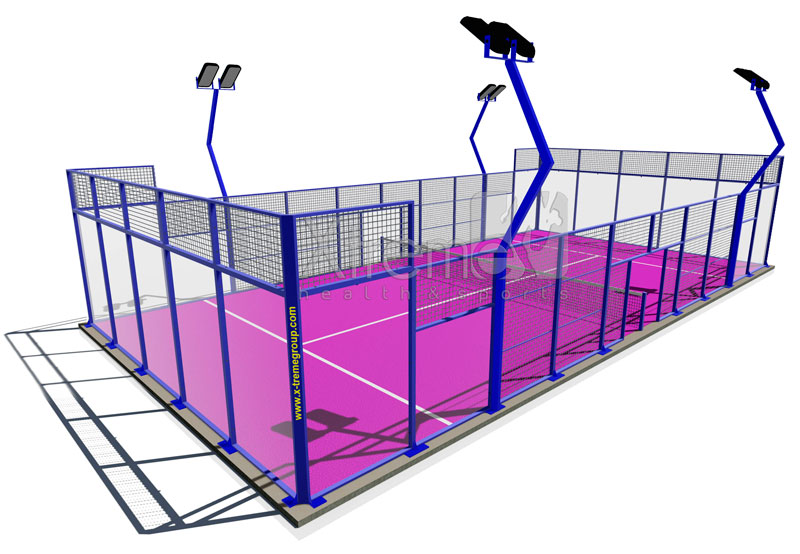

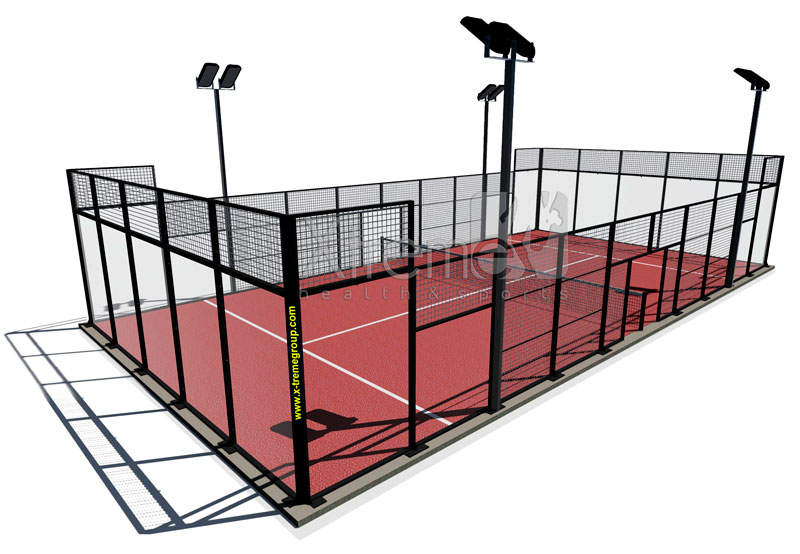

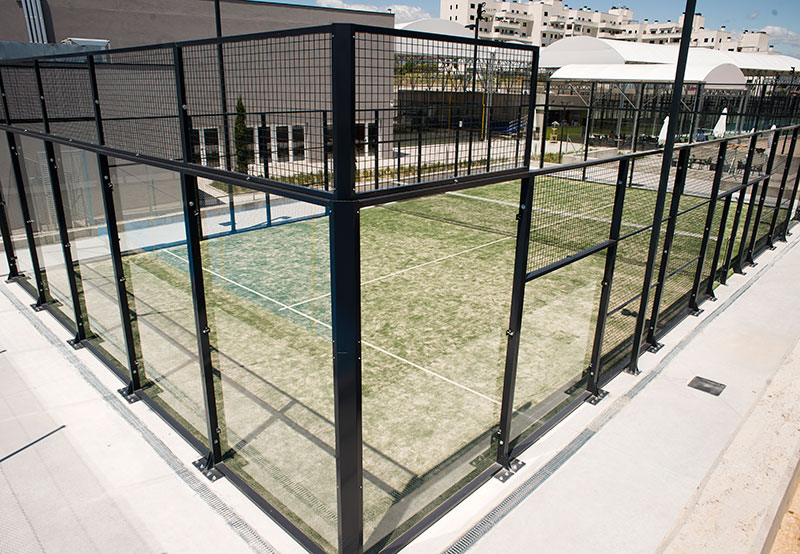

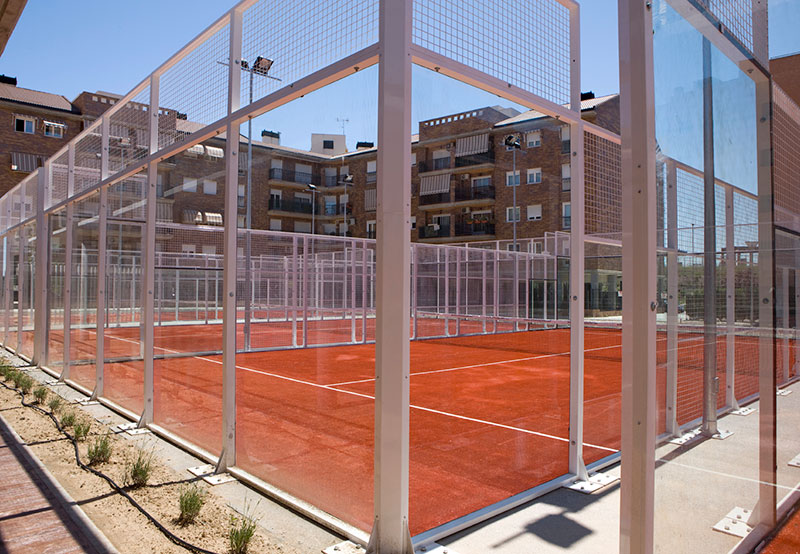

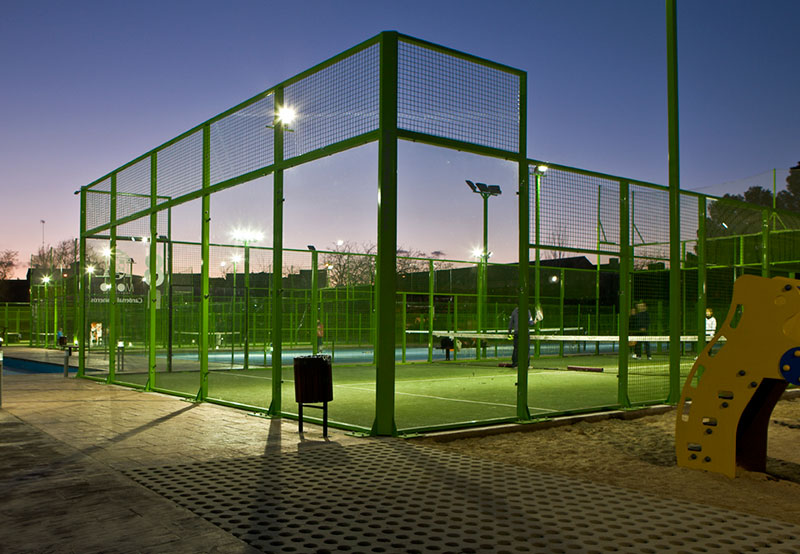

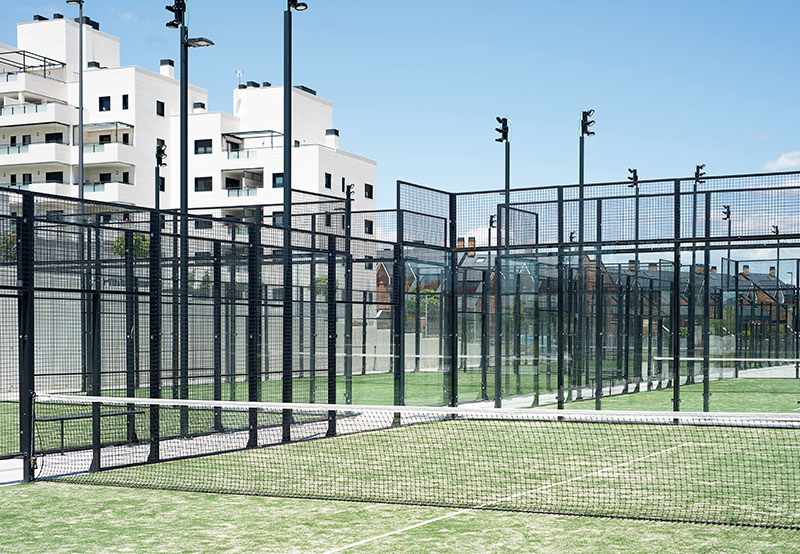

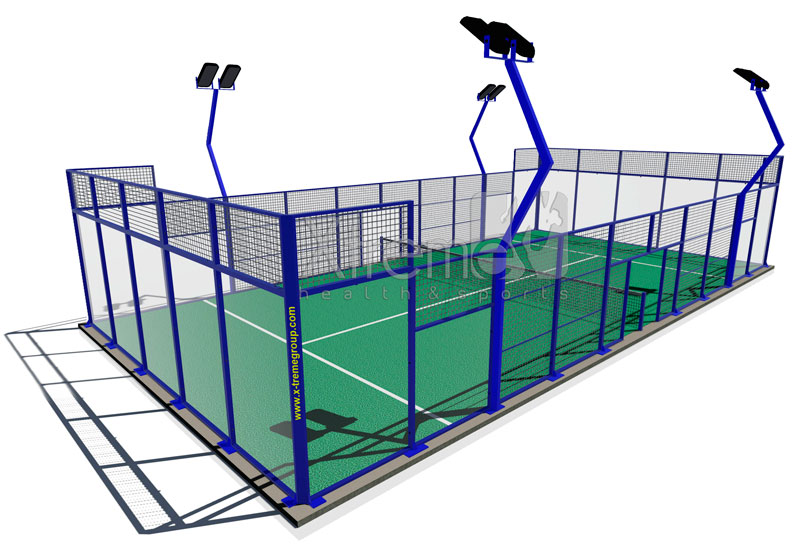

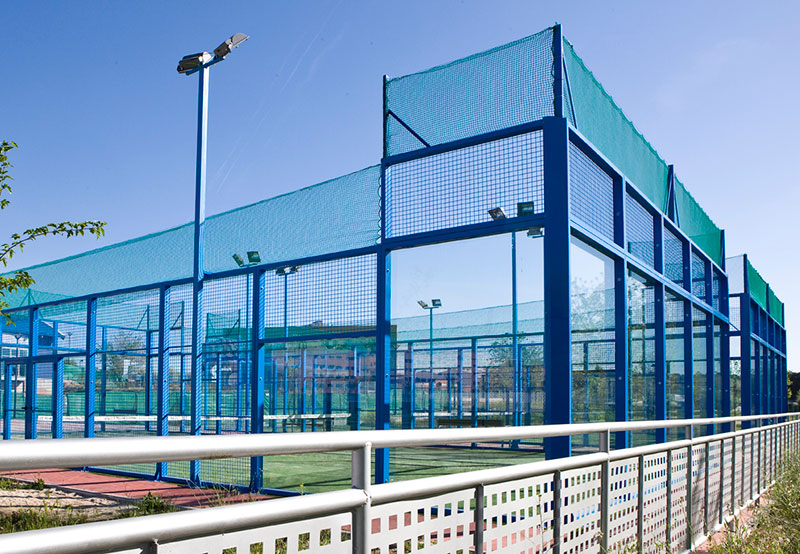

XTR STANDARD PADEL COURT

Of our padel courts, it is the most popular without a doubt.

The XTR Standard Club double padel court fits inside any sports club or neighbourhood community, perfect for playing and with an unbeatable quality/price ratio.

Ask or information without obligation!

Reference: Standard Club Padel

Type: Double Standard Padel Court

Length: 20 m (inside measurement)

Width: 10 m (inside measurement)

STRUCTURE AND HARDWARE
  • ST44 Steel Structure
  • Metallic frames with rectangular profile, anchored to the ground by two anchoring plates with two 18mm holes and reinforced by anti-vibration gussets on every plate and tube joints.
  • Side and top fences with welded mesh.
  • Finishing plates fairing in corners.
  • Rings for net support on both sides.
  • Tensor with gear to collect the steel wire.
  • Screws:
    • Metal anchor bolts to concrete, 16 mm thick, 120 mm length, with maximum traction load of 1.000 Kg each anchor.
    • Structure assembled with security self-locking screws and nuts (zinc plated or stainless).
PAINT
  • Powder Coat Paint: maximize resistance to abrasion and rusting.
  • Galvanized electric welded mesh.
  • Anti-corrosion zinc treatment with 95% Zinc Wash Primer.
  • Electrostatically applied, baked polyester powder coating.
  • Colour Palette available RAL.
GLAZING
  • 10/12 mm Clear Tempered Glass:
  • Tempered and colourless glazing, 10/12 mm thick with polished edges.
  • Fastened with nylon bushings, stainless steel screws and frame fixing brackets.
  • Perfectly aligned panels and with optimal planimetry.
LIGHTING: LED
  • We offer different possibilities of floodlights and poles.
  • 4 pole units (symmetrical or asymmetrical), 6 m high, for support and attachment of floodlights and wire, 80x80x3 structural tube with T-shape end
  • Installation of poles independent of the structure as a security measure, following the recommendation of the Spanish National Sports Council
  • 4/8 pcs 150/200 W Led floodlights, watertight and with shatterproof glass
ARTIFICIAL TURF
  • Different types adapted to different needs:
    • Fibrillated: composed of fibres bonded together. Ball bounce with greater consistency by keeping the filling more stable, but may wear out faster if not properly maintained.
    • Monofilament: composed of individual filaments. Has greater durability, but needs to redistribute sand more frequently for better ball bounce.
    • Texturized Monofilament: use of individual fibres but have gone through a texturising process, twisting the fibres. Faster play and more regular bounce as with fibrillated, but with greater durability as it is monofilament. It needs less sand.
  • Different colours:
    • Fibrillated: green and blue
    • Monofilament: green, blue, red brick, fuchsia and black
    • Texturized Monofilament: green, blue and red brick.

EXTRAS
  • Different options for customizing the courts:
    • Z-shaped lighting poles
    • Lighting poles in a different colour from the rest of the structure
    • Installation of door(s) for access to court
    • Competition exits, on both sides of the court
    • Bottom and/or side netting supplements
    • Personalization of courts with vinyls

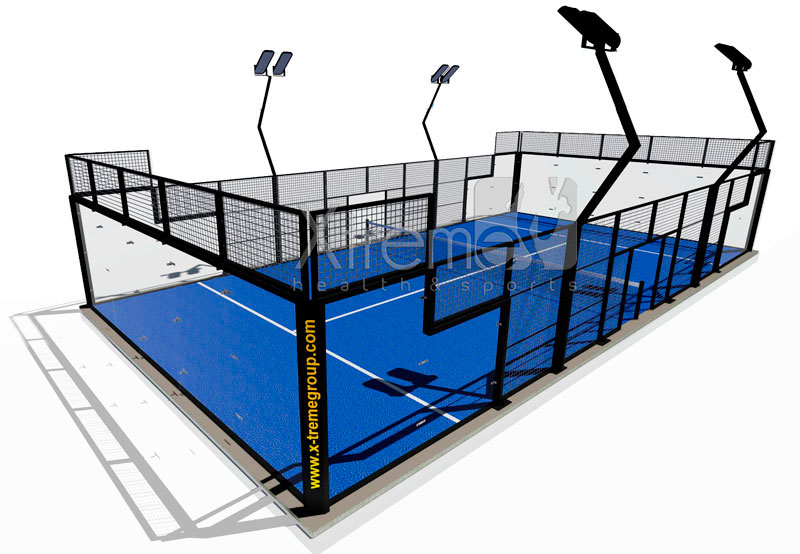

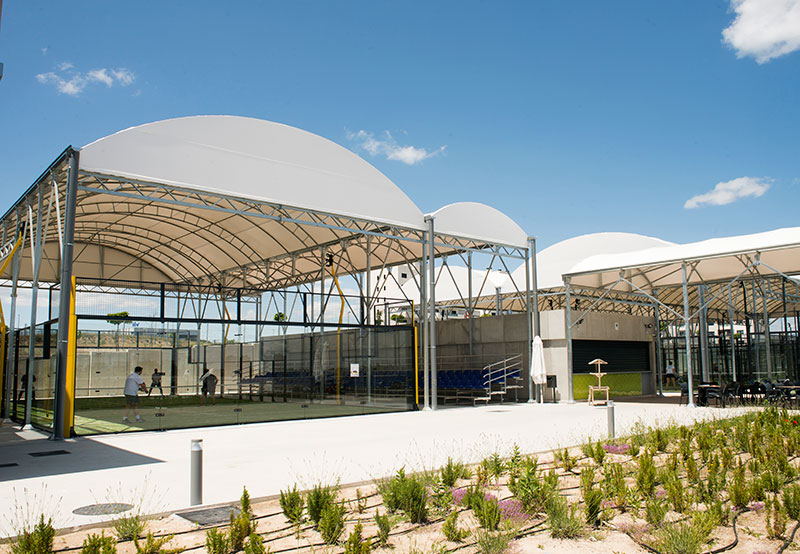

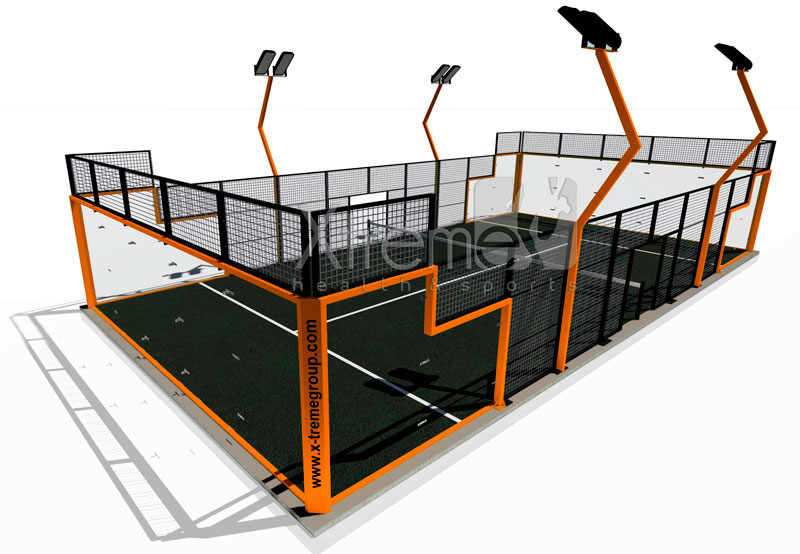

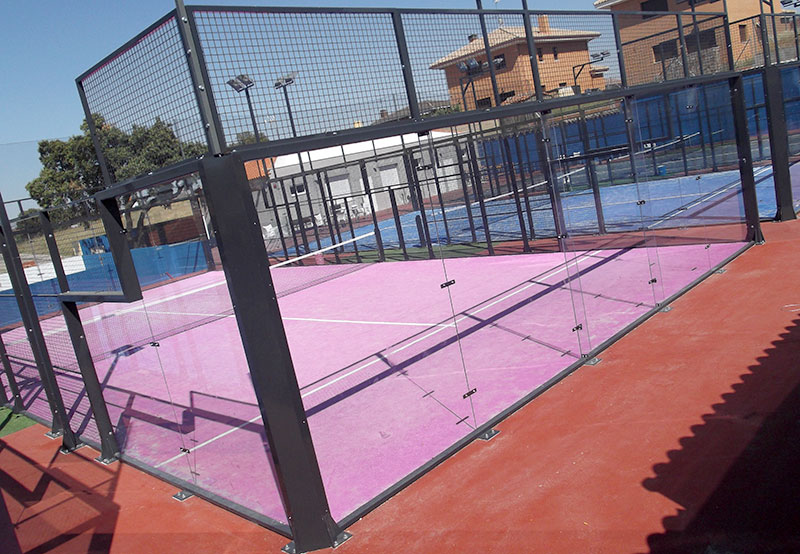

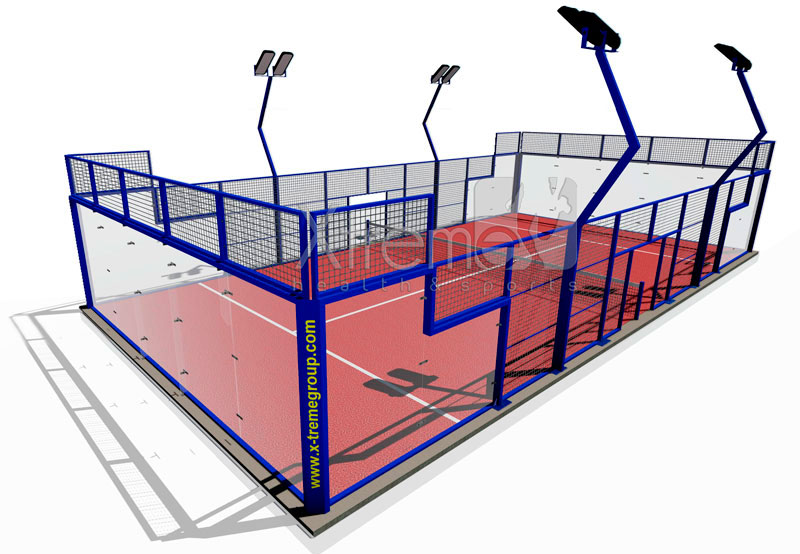

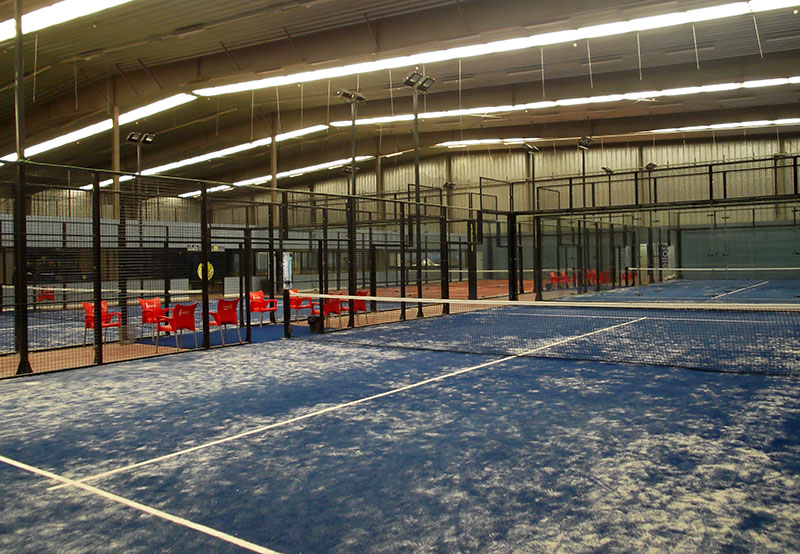

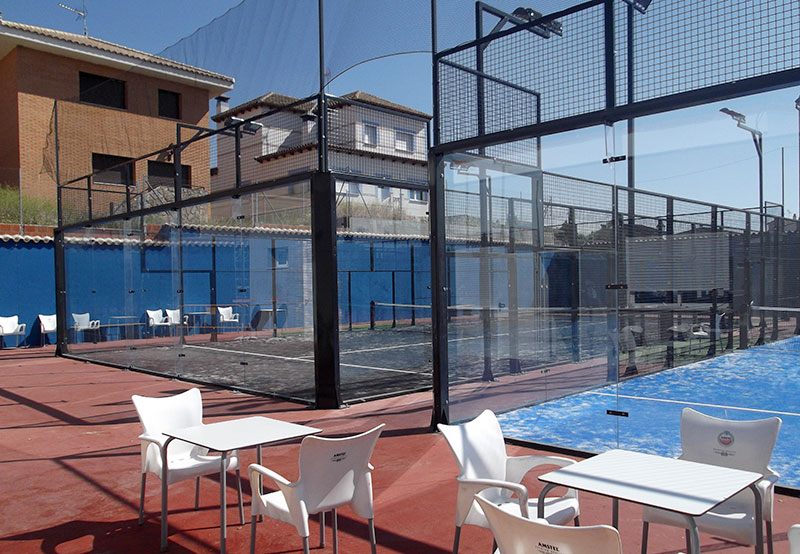

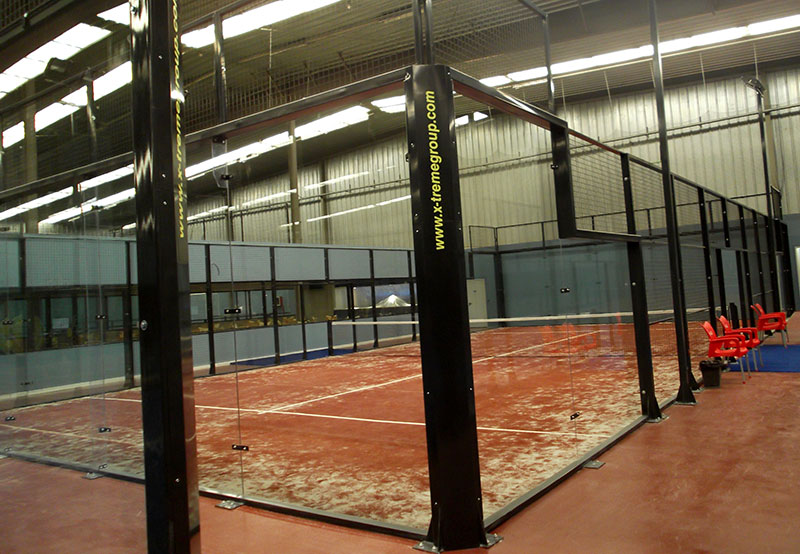

PANORAMIC PADEL COURT

Our most spectacular padel court.

The XTR Panoramic padel court is the most suitable for central courts or for sports clubs that want to give a plus of vision to the spectacular game of padel. Would you like to know more about our panoramic padel courts?

Reference: Panoramic Padel XTR

Type: Panoramic View Double Padel Court

Length: 20 m (inside measurement)

Width: 10 m (inside measurement)

STRUCTURE & HARDWARE
  • ST44 Steel Structure
  • Panoramic frame manufactured with a specially designed 140 x 80 tube
  • Metallic frames with rectangular profile, anchored to the ground by anchoring plates with mechanical pegs and reinforced by anti-vibration gussets on every plate and tube joints.
  • Side and top fences with welded mesh.
  • Finishing plates fairing in corners.
  • Rings for net support on both sides and tensor with gear to collect the steel wire.
  • Screws:
    • Metal anchor bolts to concrete, 16 mm thick, 120 mm length, with maximum traction load of 1.000 Kg each anchor.
    • Structure assembled with security self-locking screws and nuts (zinc plated or stainless).
PAINT
  • Powder Coat Paint: maximize resistance to abrasion and rusting.
  • Galvanized electric welded mesh.
  • Anti-corrosion zinc treatment with 95% Zinc Wash Primer.
  • Electrostatically applied, baked polyester powder coating.
  • Colour Palette available RAL.
GLAZING
  • 12 mm Clear Tempered Glass:
  • Tempered and colourless glazing, 12 mm thick with polished edges.
  • Fastened with nylon bushings, stainless steel screws and frame fixing brackets.
  • Perfectly aligned panels and with optimal planimetry.
LIGHTING: LED
  • We offer different possibilities of floodlights and poles.
  • 4 pole units (symmetrical or asymmetrical), 6 m high, for support and attachment of floodlights and wire, 80x80x3 structural tube with T-shape end
  • Installation of poles independent of the structure as a security measure, following the recommendation of the Spanish National Sports Council
  • 4/8 pcs 150/200 W Led floodlights, watertight and with shatterproof glass
ARTIFICIAL TURF
  • Different types adapted to different needs:
    • Fibrillated: composed of fibres bonded together. Ball bounce with greater consistency by keeping the filling more stable, but may wear out faster if not properly maintained.
    • Monofilament: composed of individual filaments. Has greater durability, but needs to redistribute sand more frequently for better ball bounce.
    • Texturized Monofilament: use of individual fibres but have gone through a texturising process, twisting the fibres. Faster play and more regular bounce as with fibrillated, but with greater durability as it is monofilament. It needs less sand.
  • Different colours:
    • Fibrillated: green and blue
    • Monofilament: green, blue, red brick, fuchsia and black
    • Texturized Monofilament: green, blue and red brick.

EXTRAS
  • Different options for customizing the courts:
    • Z-shaped lighting poles
    • Lighting poles in a different colour from the rest of the structure
    • Installation of door(s) for access to court
    • Competition exits, on both sides of the court
    • Bottom and/or side netting supplements
    • Personalization of courts with vinyls

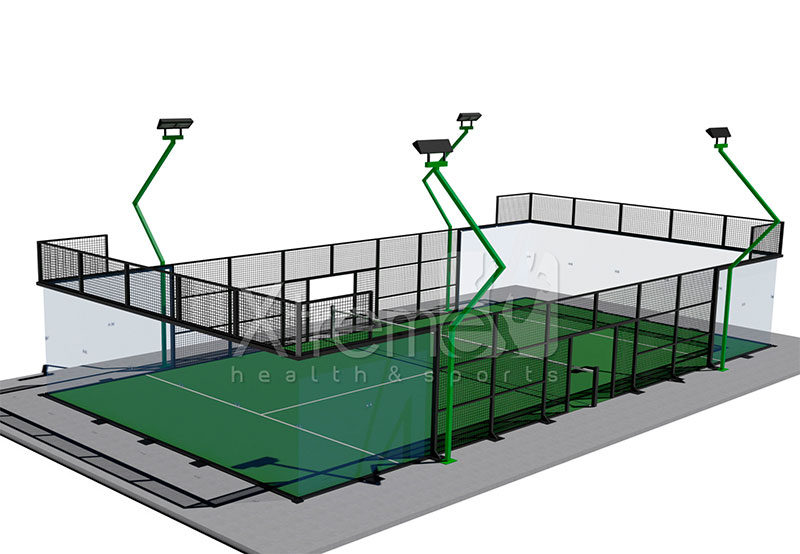

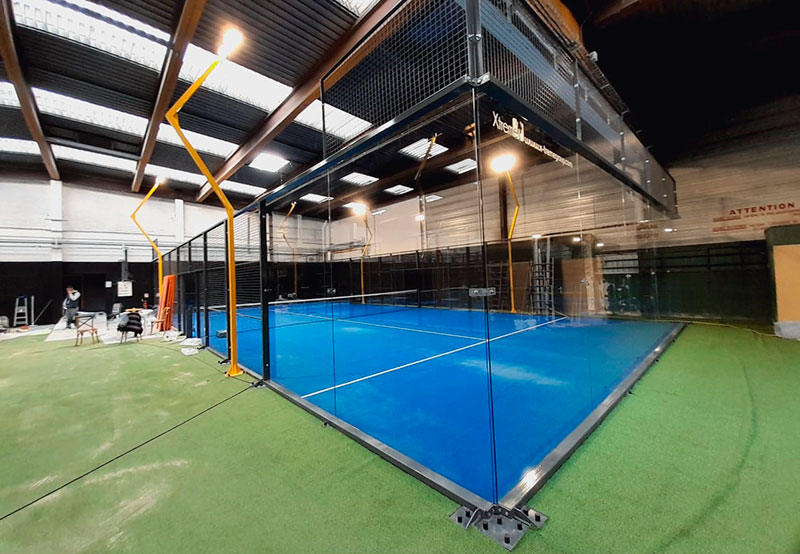

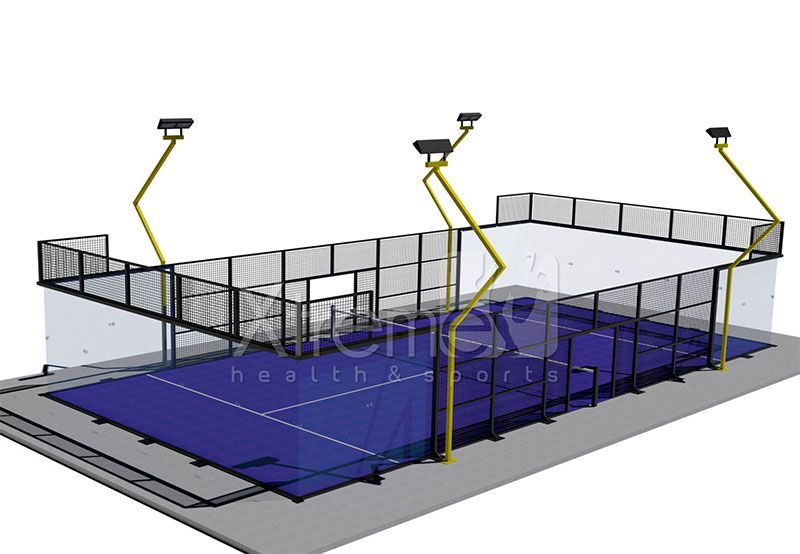

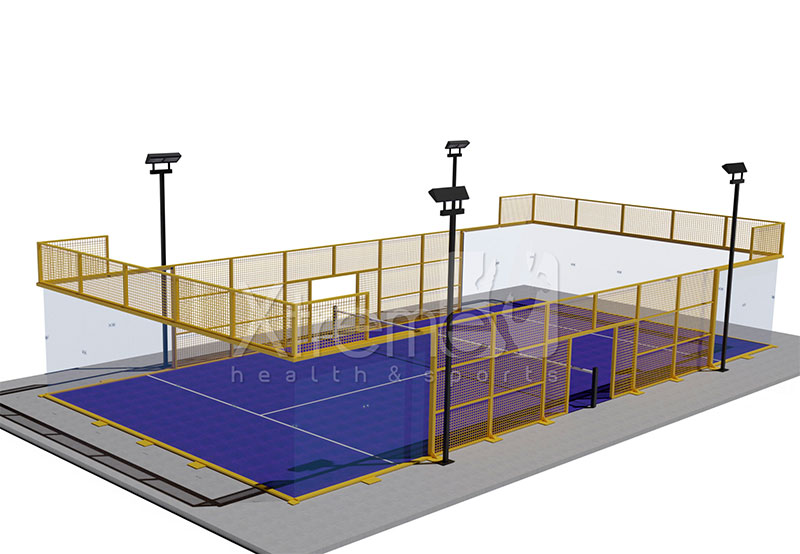

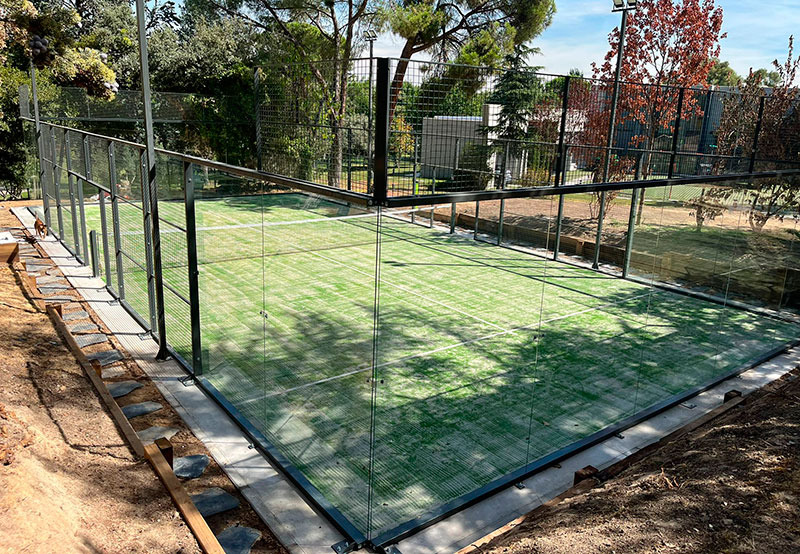

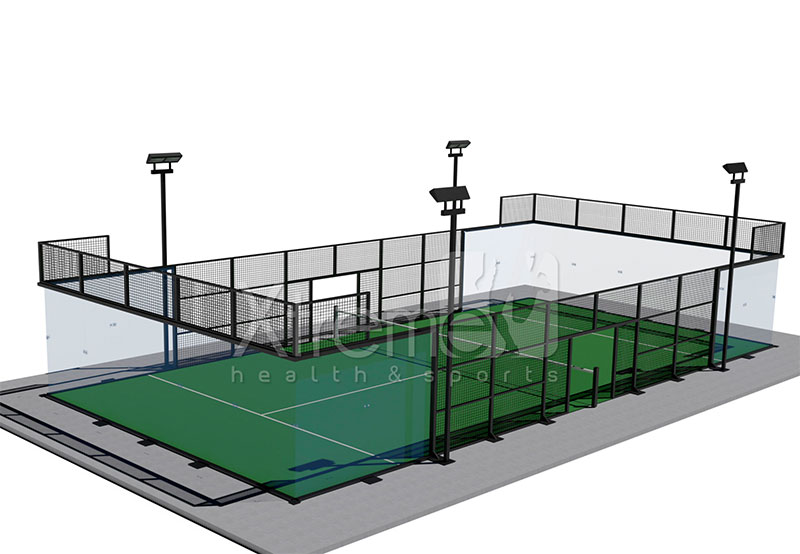

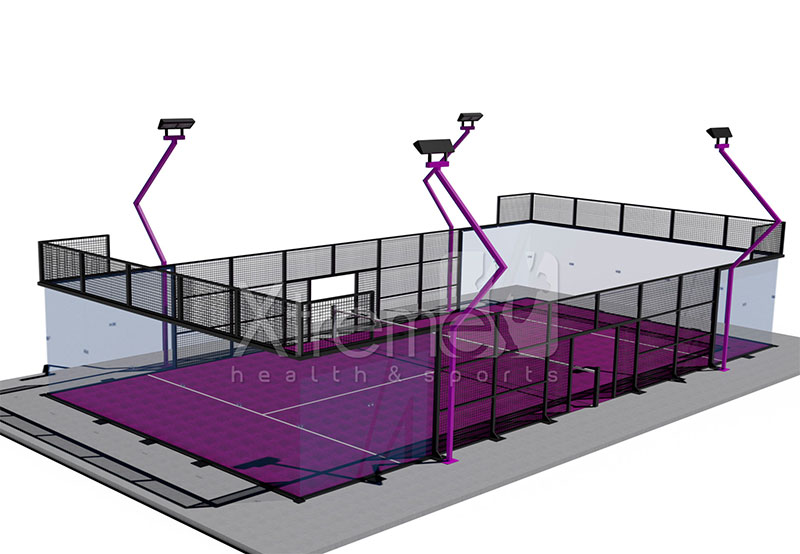

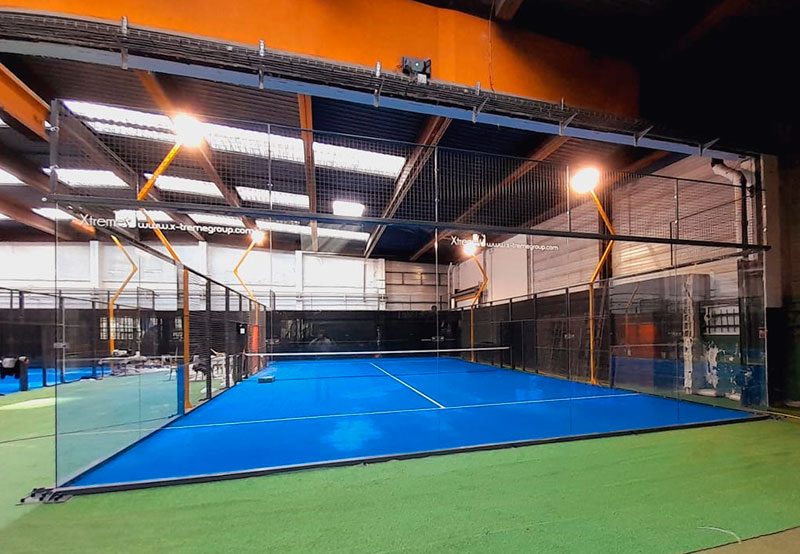

XTREME VISION PANORAMIC PADEL COURT

Our newest and most visual court model

The Panoramic Xtreme Vision padel court will certainly make every move and every play of your padel matches enjoyable. It is also a perfect choice for your club’s centre court.

Reference: Xtreme Vision Panoramic Padel XTR

Type: Total Panoramic View Double Padel Court

Length: 20 m (inside measurement)

Width: 10 m (inside measurement)

STRUCTURE & HARDWARE
  • ST44 Steel Structure
  • Panoramic frame manufactured with a specially designed 100 x 60 tube
  • Metallic frames with rectangular profile, anchored to the ground by anchoring plates with mechanical pegs and reinforced by anti-vibration gussets on every plate and tube joints.
  • Side and top fences with welded mesh.
  • Finishing plates fairing in corners.
  • Rings for net support on both sides and tensor with gear to collect the steel wire.
  • Screws:
    • Metal anchor bolts to concrete, 16 mm thick, 120 mm length, with maximum traction load of 1.000 Kg each anchor.
    • Structure assembled with security self-locking screws and nuts (zinc plated or stainless).
PAINT
  • Powder Coat Paint: maximize resistance to abrasion and rusting.
  • Galvanized electric welded mesh.
  • Anti-corrosion zinc treatment with 95% Zinc Wash Primer.
  • Electrostatically applied, baked polyester powder coating.
  • Colour Palette available RAL.
GLAZING
  • 12 mm Clear Tempered Glass:
  • Tempered and colourless glazing, 12 mm thick with polished edges.
  • Fastened with nylon bushings, stainless steel screws and frame fixing brackets.
  • Perfectly aligned panels and with optimal planimetry.
LIGHTING: LED
  • We offer different possibilities of floodlights and poles.
  • 4 pole units (symmetrical or asymmetrical), 6 m high, for support and attachment of floodlights and wire, 80x80x3 structural tube with T-shape end
  • Installation of poles independent of the structure as a security measure, following the recommendation of the Spanish National Sports Council
  • 4/8 pcs 150/200 W Led floodlights, watertight and with shatterproof glass
ARTIFICIAL TURF
  • Different types adapted to different needs:
    • Fibrillated: composed of fibres bonded together. Ball bounce with greater consistency by keeping the filling more stable, but may wear out faster if not properly maintained.
    • Monofilament: composed of individual filaments. Has greater durability, but needs to redistribute sand more frequently for better ball bounce.
    • Texturized Monofilament: use of individual fibres but have gone through a texturising process, twisting the fibres. Faster play and more regular bounce as with fibrillated, but with greater durability as it is monofilament. It needs less sand.
  • Different colours:
    • Fibrillated: green and blue
    • Monofilament: green, blue, red brick, fuchsia and black
    • Texturized Monofilament: green, blue and red brick.

EXTRAS
  • Different options for customizing the courts:
    • Z-shaped lighting poles
    • Lighting poles in a different colour from the rest of the structure
    • Installation of door(s) for access to court
    • Competition exits, on both sides of the court
    • Bottom and/or side netting supplements
    • Personalization of courts with vinyls

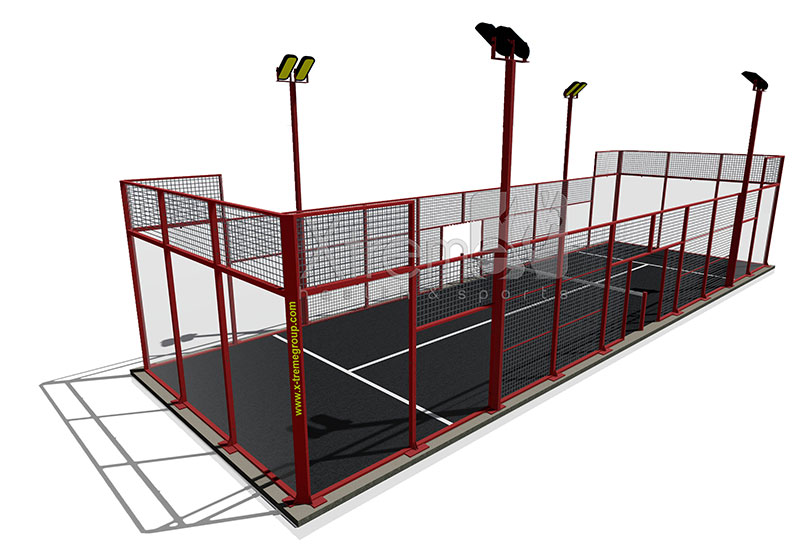

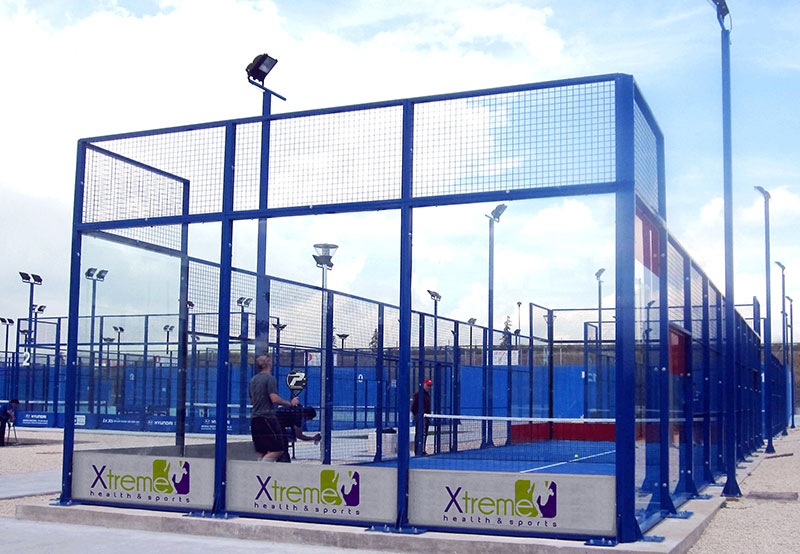

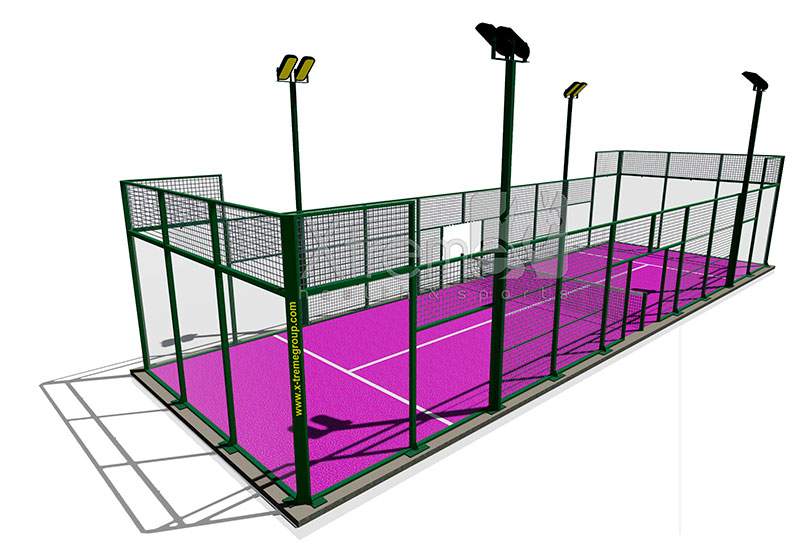

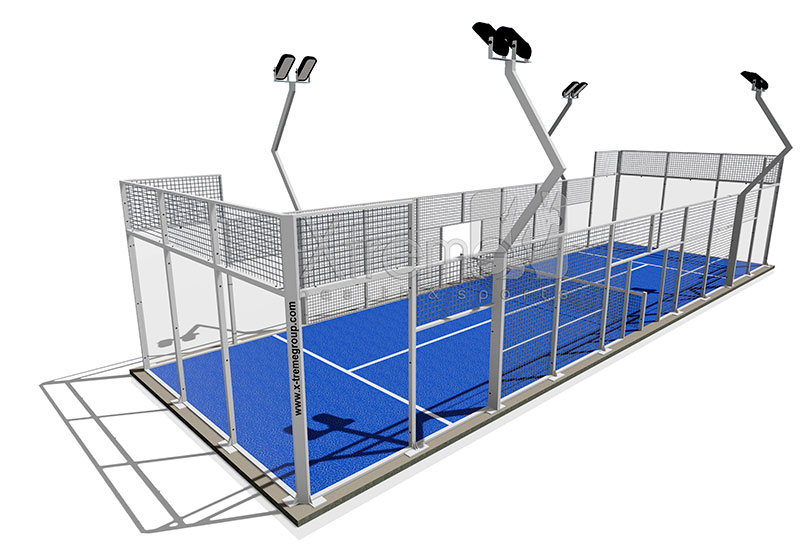

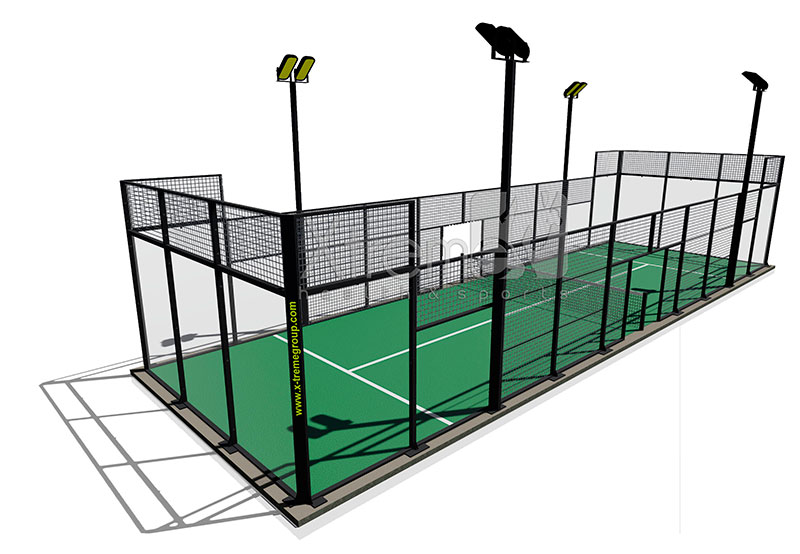

SINGLE PADEL COURT

Our padel court for individual play.

The XTR Single padel court is perfect for clubs that want to make the most of their space. Because of their smaller dimensions and the fact that they are suitable for 1-on-1, they can be installed in smaller spaces and used for private lessons without blocking the double courts.

Reference: Single Padel

Type: Single Padel Court

Length: 20 m (inside measurement)

Width: 6 m (inside measurement)

STRUCTURE & HARDWARE
  • ST44 Steel Structure
  • Metallic frames with rectangular profile, anchored to the ground by two anchoring plates with two 18mm holes and reinforced by anti-vibration gussets on every plate and tube joints.
  • Side and top fences with welded mesh.
  • Finishing plates fairing in corners.
  • Rings for net support on both sides.
  • Tensor with gear to collect the steel wire.
  • Screws:
    • Metal anchor bolts to concrete, 14 mm thick, 180 mm length, with maximum traction load of 1.000 Kg each anchor.
    • Structure assembled with security self-locking screws and nuts (zinc plated or stainless).
PAINT
  • Powder Coat Paint: maximize resistance to abrasion and rusting.
  • Galvanized electric welded mesh.
  • Anti-corrosion zinc treatment with 95% Zinc Wash Primer.
  • Electrostatically applied, baked polyester powder coating.
  • Colour Palette available RAL.
GLAZING
  • 10/12 mm Clear Tempered Glass:
  • Tempered and colourless glazing, 10/12 mm thick with polished edges.
  • Fastened with nylon bushings, stainless steel screws and frame fixing brackets.
  • Perfectly aligned panels and with optimal planimetry.
LIGHTING: LED
  • We offer different possibilities of floodlights and poles.
  • 4 pole units (symmetrical or asymmetrical), 6 m high, for support and attachment of floodlights and wire, 80x80x3 structural tube with T-shape end
  • Installation of poles independent of the structure as a security measure, following the recommendation of the Spanish National Sports Council
  • 4/8 pcs 150/200 W Led floodlights, watertight and with shatterproof glass
ARTIFICIAL TURF
  • Different types adapted to different needs:
    • Fibrillated: composed of fibres bonded together. Ball bounce with greater consistency by keeping the filling more stable, but may wear out faster if not properly maintained.
    • Monofilament: composed of individual filaments. Has greater durability, but needs to redistribute sand more frequently for better ball bounce.
    • Texturized Monofilament: use of individual fibres but have gone through a texturising process, twisting the fibres. Faster play and more regular bounce as with fibrillated, but with greater durability as it is monofilament. It needs less sand.
  • Different colours:
    • Fibrillated: green and blue
    • Monofilament: green, blue, red brick, fuchsia and black
    • Texturized Monofilament: green, blue and red brick.

EXTRAS
  • Different options for customizing the courts:
    • Z-shaped lighting poles
    • Lighting poles in a different colour from the rest of the structure
    • Installation of door(s) for access to court
    • Competition exits, on both sides of the court
    • Bottom and/or side netting supplements
    • Personalization of courts with vinyls

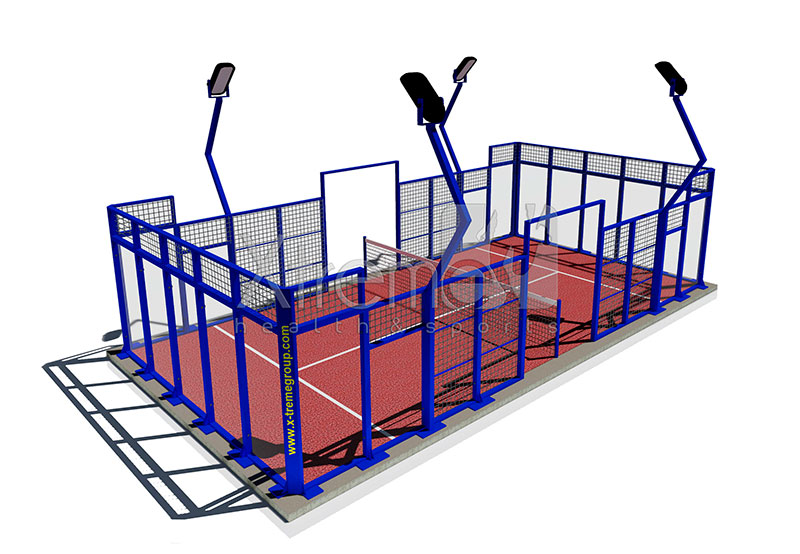

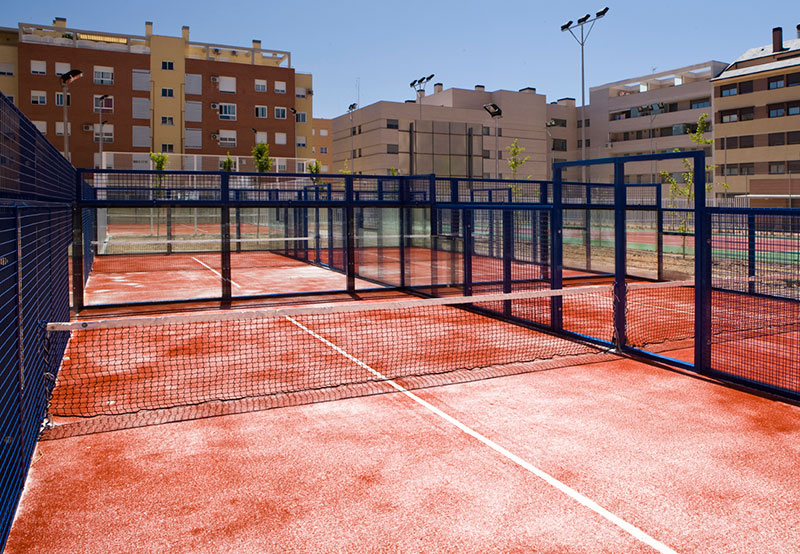

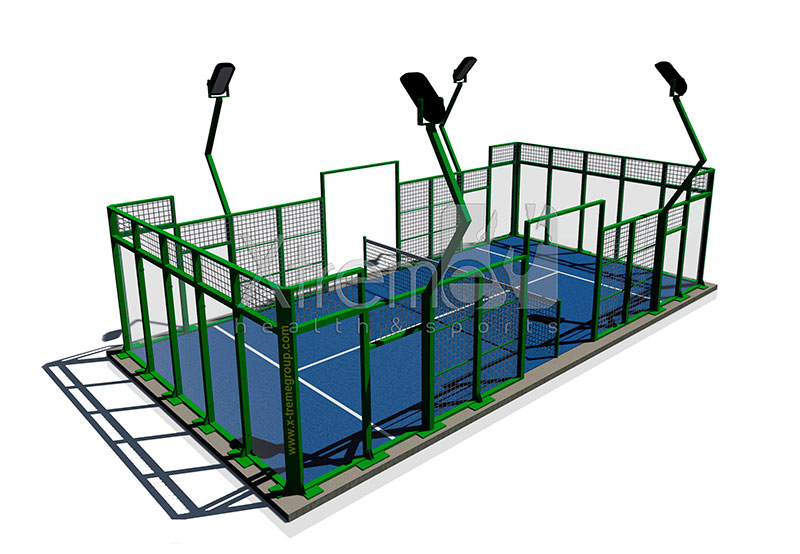

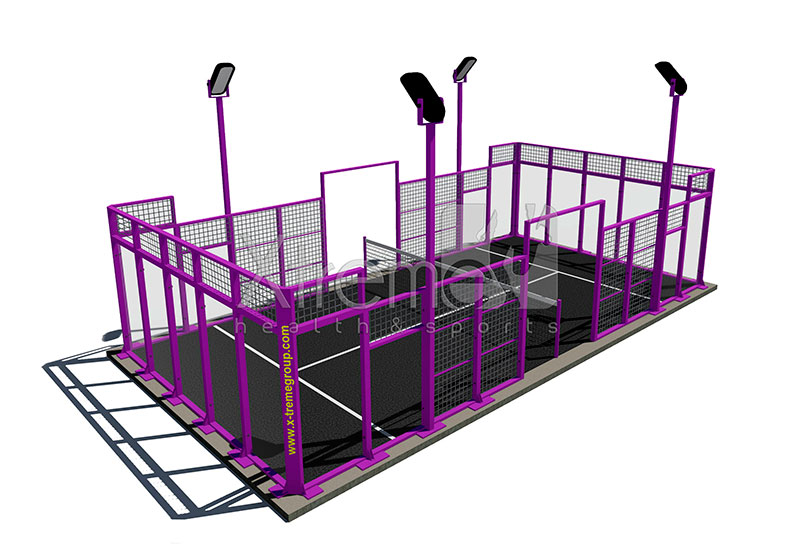

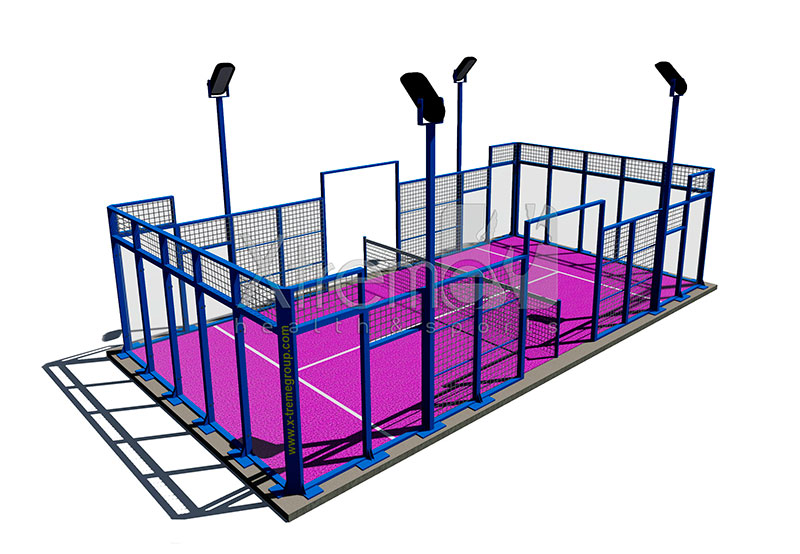

BABY PADEL COURT

Our padel court for the little ones.

The XTR Baby padel court is a good option for clubs or areas very focused on children’s sports. Or to maximise space if there is no possibility of another double court, the padel school for kids will be able to make the most of it with the little ones.

Reference: Baby Padel

Type: Baby Padel Court

Length: 10 m (inside measurement)

Width: 5 m (inside measurement)

STRUCTURA & HARDWARE
  • ST44 Steel Structure
    • Metallic frames with rectangular profile, anchored to the ground by two anchoring plates with two 18mm holes and reinforced by anti-vibration gussets on every plate and tube joints.
    • Side and top fences with welded mesh.
    • Finishing plates fairing in corners.
    • Rings for net support on both sides and tensor with gear to collect the steel wire.
  • Screws
    • Metal anchor bolts to concrete, 14 mm thick, 120 mm length, with maximum traction load of 1.000 Kg each anchor.
    • Structure assembled with security self-locking screws and nuts (zinc plated or stainless).
PAINT
  • Powder Coat Paint: maximize resistance to abrasion and rusting.
  • Galvanized electric welded mesh.
  • Anti-corrosion zinc treatment with 95% Zinc Wash Primer.
  • Electrostatically applied, baked polyester powder coating.
  • Colour Palette available RAL.
GLAZING
  • 10 mm Clear Tempered Glass:
  • Tempered and colourless glazing, 10 mm thick with polished edges.
  • Fastened with nylon bushings, stainless steel screws and frame fixing brackets.
  • Perfectly aligned panels and with optimal planimetry.
LIGHTING: LED
  • We offer different possibilities of floodlights and poles.
  • 2/4 pole units (symmetrical or asymmetrical), 4 m high, for support and attachment of floodlights and wire, 80x80x3 structural tube with T-shape end
  • Installation of poles independent of the structure as a security measure, following the recommendation of the Spanish National Sports Council
  • 2/4 pcs 150/200 W Led floodlights, watertight and with shatterproof glass
ARTIFICIAL TURF
  • Different types adapted to different needs:
    • Fibrillated: composed of fibres bonded together. Ball bounce with greater consistency by keeping the filling more stable, but may wear out faster if not properly maintained.
    • Monofilament: composed of individual filaments. Has greater durability, but needs to redistribute sand more frequently for better ball bounce.
    • Texturized Monofilament: use of individual fibres but have gone through a texturising process, twisting the fibres. Faster play and more regular bounce as with fibrillated, but with greater durability as it is monofilament. It needs less sand.
  • Different colours:
    • Fibrillated: green and blue
    • Monofilament: green, blue, red brick, fuchsia and black
    • Texturized Monofilament: green, blue and red brick.

EXTRAS
  • Different options for customizing the courts:
    • Z-shaped lighting poles
    • Lighting poles in a different colour from the rest of the structure
    • Installation of door(s) for access to court
    • Competition exits, on both sides of the court
    • Bottom and/or side netting supplements
    • Personalization of courts with vinyls
Cookies
We use cookies. If you are ok with this, simply click "Accept all". You can also choose what type of cookies you want by clicking on "Customize". Read our cookies policy
Customize Reject all Accept all
Cookies
Choose what type of cookies to accept. Your choice will be saved. If you want to review your choice, you can do so in the footer. Read our cookies policy
Save Selection Reject all Accept all
